DC connector designed for power applications in small and medium-sized electronic equipment. Provides a stable connection through coaxial contact with positive (inner) and negative (outer) polarity, ensuring safe voltage and current transmission. Technical specifications: - Type: DC connector (barrel) - Gender: Male - Mounting: Cable mount - Orientation: Straight - Rated voltage: 12 VDC - Rated current: 1 A - Inner diameter: 2.1 mm - Outer diameter: 5.5 mm - Barrel length: 9.0 mm - Contact resistance: ≤30 mΩ - Insulation resistance: ≥100 MΩ (24VDC, 2A) - Withstand voltage: 500 VAC / 1 min Materials: - Insulator: Nylon + fiber, black - Inner barrel: Nickel-plated brass - Outer sleeve: Nickel-plated brass - Ground terminal: Nickel-plated brass - Housing: Black PE

• Login to access this content

•

  REF: 3378

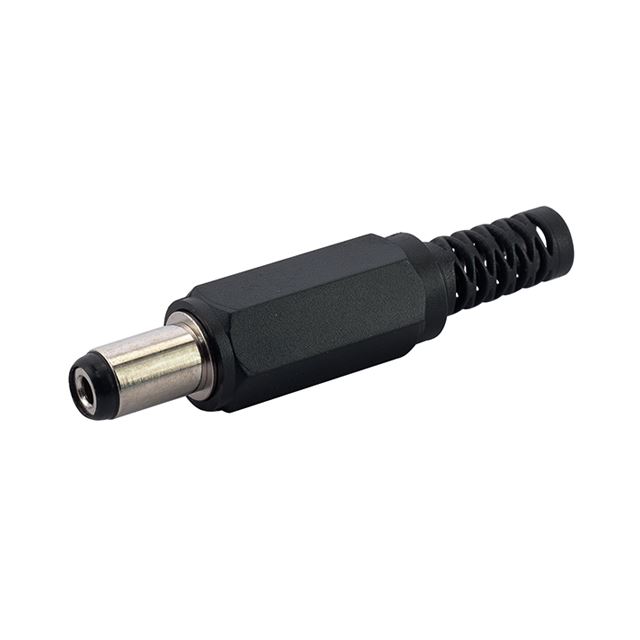

  DC Jack Aerial Power Connector 5x5x2.1mm
