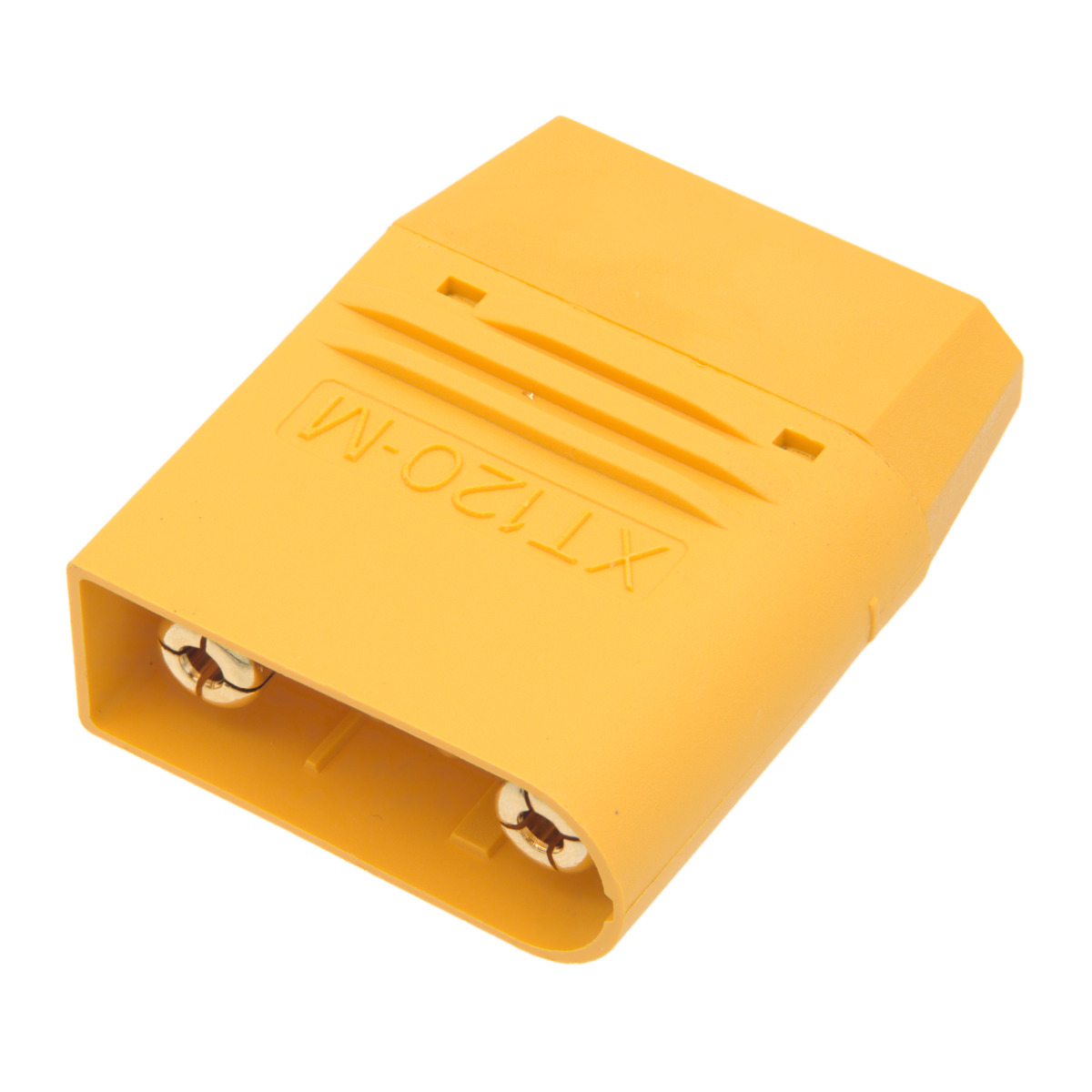

XT120 2+4 pin male connector [60A], extra pins for signal
REF: AM-XT120(2+4)-M EAN: 8435419569107 Marca: AMASS
XT120 2+4 pin male connector [60A], extra pins for signal
XT120 2+4 pin male connector [60A], extra pins for signalXT120 2+4 pin male connector [60A], extra pins for signalXT120 2+4 pin male connector [60A], extra pins for signalXT120 2+4 pin male connector [60A], extra pins for signal

description

The XT120(2+4) connector is a high-current connector designed for applications requiring robust and reliable power transmission. It features 2 power pins capable of handling up to 120A and 4 signal pins for data transmission or additional control functions. This hybrid design allows for efficient integration into systems requiring both power and communication, such as electric vehicles, industrial drones, and high-power equipment. Its robust construction and high-quality materials ensure a secure and long-lasting connection, minimizing the risk of accidental disconnections and improving operational efficiency. Specifications:

Connector: XT120(2+4)-F
Type: Male
Electrical mounting: Solder
Pins: 6 (2 power + 4 signal)
Contacts: 6
Color: Yellow
Orientation: Straight
Working voltage: 500V
Working current: 60A (power pins)
Working temperature: -20...120°C
Contact resistance: ≤1.0mΩ
Materials
Material contactor: Brass (gold plated)
Housing material: PA (polyamide)
Flammability class: UL94V-0
Durability mechanics: 1000 cycles
