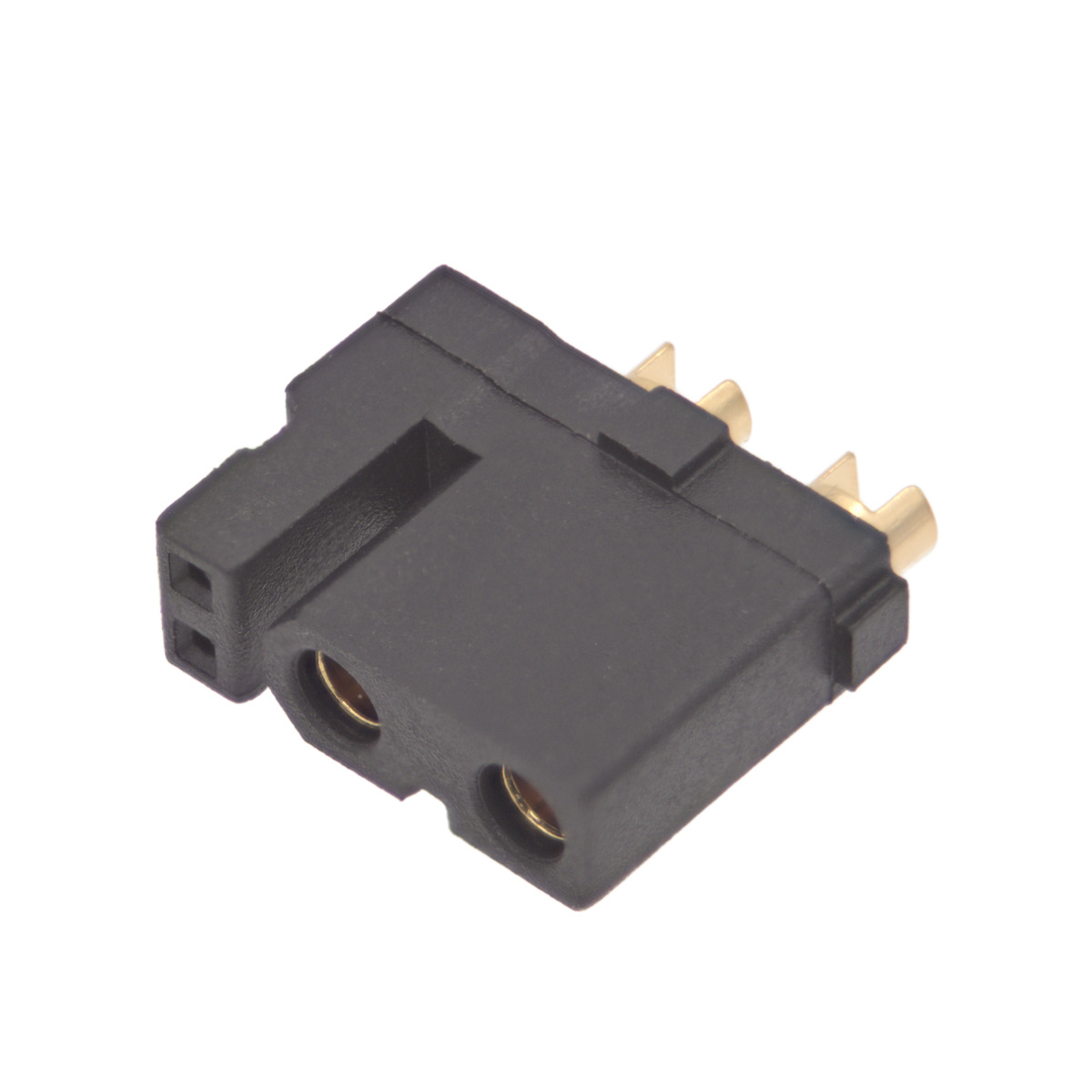

The XT30(2+2) is a connector that features 2 power pins and 2 signal pins. Designed for applications that require a compact and reliable connection for both power and data, it is ideal for drones, RC vehicles, and portable electronic devices. It supports a working current of up to 15A on the power pins. The signal pins allow for additional functions such as monitoring, battery balancing, or low-voltage data transmission. Specifications:
| Connector: | XT30(2+2)-F |
| Type: | Female |
| Electrical mounting: | Solder |
| Pins: | 4 (2 power + 2 signal) |
| Contacts: | 4 |
| Color: | Yellow |
| Orientation: | Straight |
| Working voltage: | 250V |
| Working current: | 15A (power pins) | i
| Working temperature: | -20...120°C |
| Contact resistance: | ≤1.2mΩ |
| Materials | |
| Contector material: | Brass (gold plated) |
| Housing material: | PA (Polyamide) |
| Flammability class: | UL94V-0 |
| Mechanical durability: | 1000 cycles |
