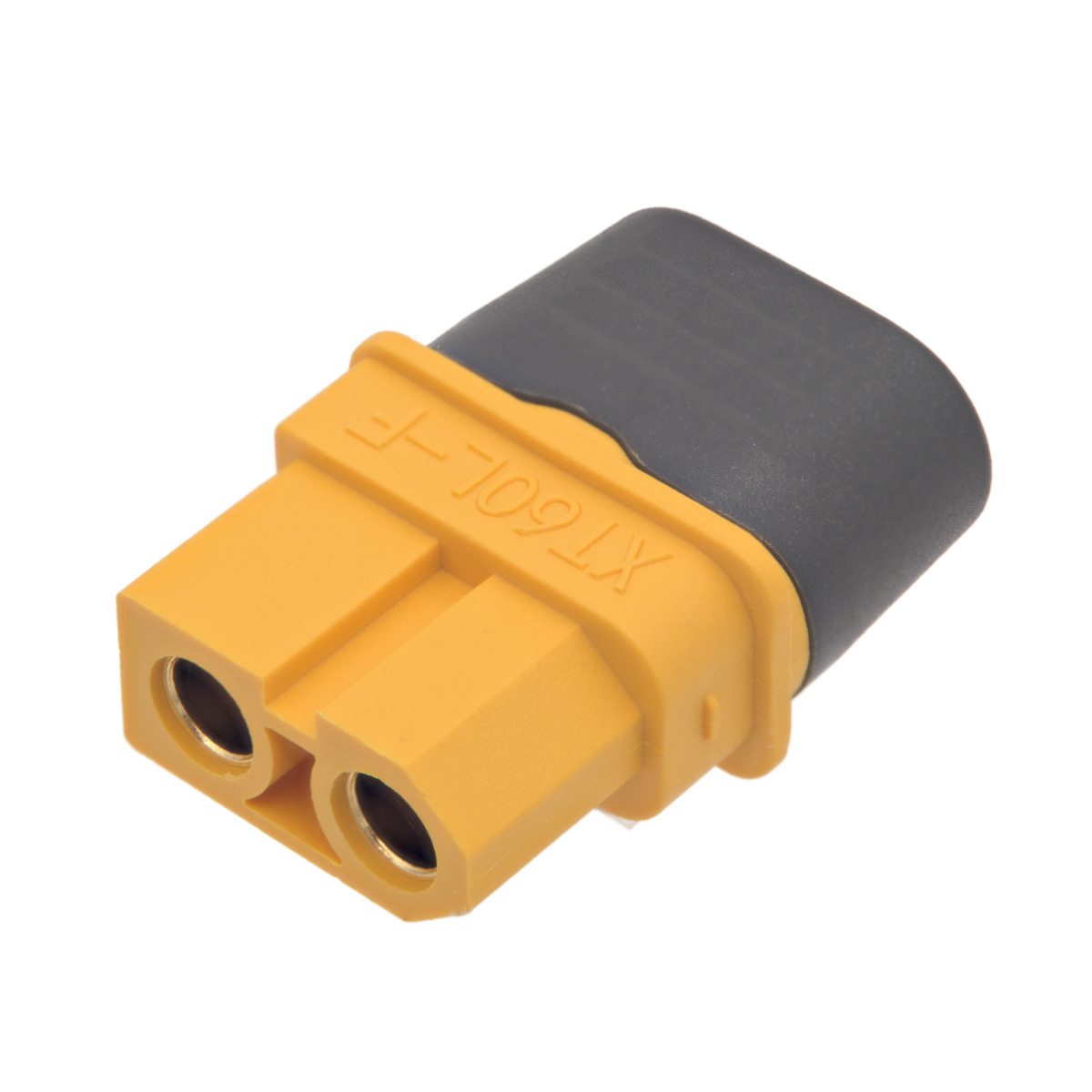

+34 623 315 294![XT60L female connector [40A/60A] with locking mechanism](https://www.electronicgrup.com/img/XT60L-FN1.jpg)
![XT60L female connector [40A/60A] with locking mechanism](https://www.electronicgrup.com/img/thumb.XT60L-FN3.jpg)
![XT60L female connector [40A/60A] with locking mechanism](https://www.electronicgrup.com/img/thumb.XT60L-FN2.jpg)
![XT60L female connector [40A/60A] with locking mechanism](https://www.electronicgrup.com/img/thumb.XT60L-FN1.jpg)
The XT60L is an upgraded version of the XT60 female connector, designed to handle currents up to 60A with lower internal resistance. Its main feature is the integrated locking mechanism, which ensures a secure connection and prevents accidental disconnections due to vibration or pulling. Ideal for high-power applications such as drones, RC vehicles and industrial equipment. Specifications:
| Connector: | XT60L-F |
| Type: | Female |
| Locking mechanism: | Yes |
| Electrical assembly: | Soldering |
| Pins: | 2 |
| Contacts: | 2 |
| Color: | Yellow |
| Orientation: | Straight |
| Working voltage: | 500V |
| Working current: | 60A |
| Working temperature: | -20...120°C |
| Contact resistance: | ≤1.0mΩ |
| Materials | |
| Contacts material: | Brass (gold plated) |
| Shell material: | High temperature resistant PA (polyamide) |
| Flammability class: | UL94 V-0 |
| Mechanical durability: | 1000 cycles |
