+34 623 315 294![Pack of XT90HW male and female connectors IP67 waterproof [45A/90A]](https://www.electronicgrup.com/img/XT90HW-PN1.jpg)
![Pack of XT90HW male and female connectors IP67 waterproof [45A/90A]](https://www.electronicgrup.com/img/thumb.XT90HW-PN1.jpg)

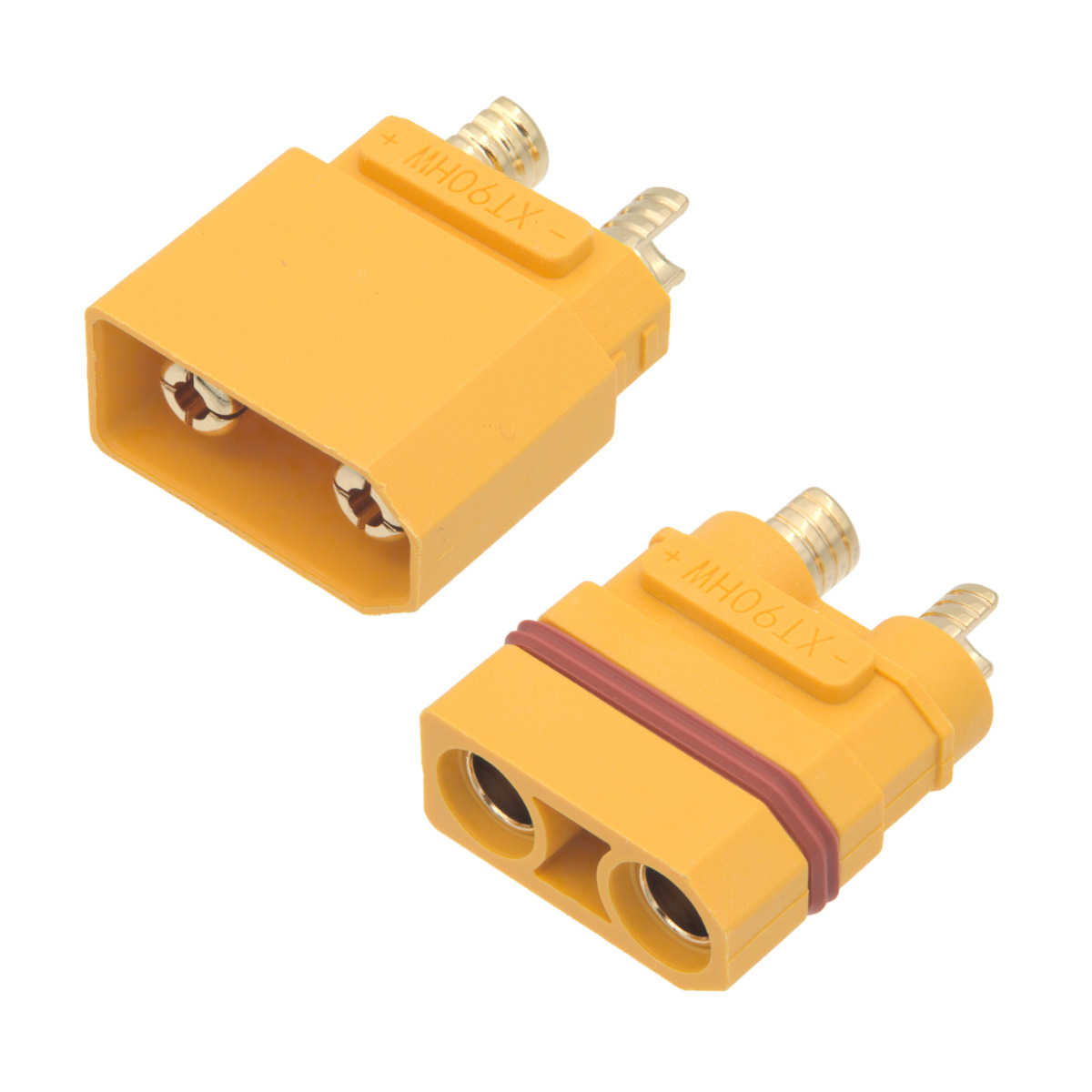

The XT90HW connector is the IP67-rated female version, offering the same protection and durability as the male, for connections requiring high environmental resistance. Specs:
| Connector: | XT90 | ||
| Type: | Male and Female | ||
| Electrical mounting: | Solder | ||
| Pins: | 2 | ||
| Contacts: | Color: | Yellow | |
| Orientation: | Straight | ||
| IP rating: | IP67 | ||
| Working voltage: | 500V | ||
| Working current: | 45A | ||
| Instantaneous current: | 90A | ||
| Working temperature: | -20...120°C | ||
| Contact resistance: | ≤1.2mΩ | ||
| Materials | |||
| Contactor material: | Brass | ||
| Housing material: | PA (polyamide) | ||
| Flammability class: | UL94V-0 | ||
| Mechanical durability: | 1000 cycles | ||
