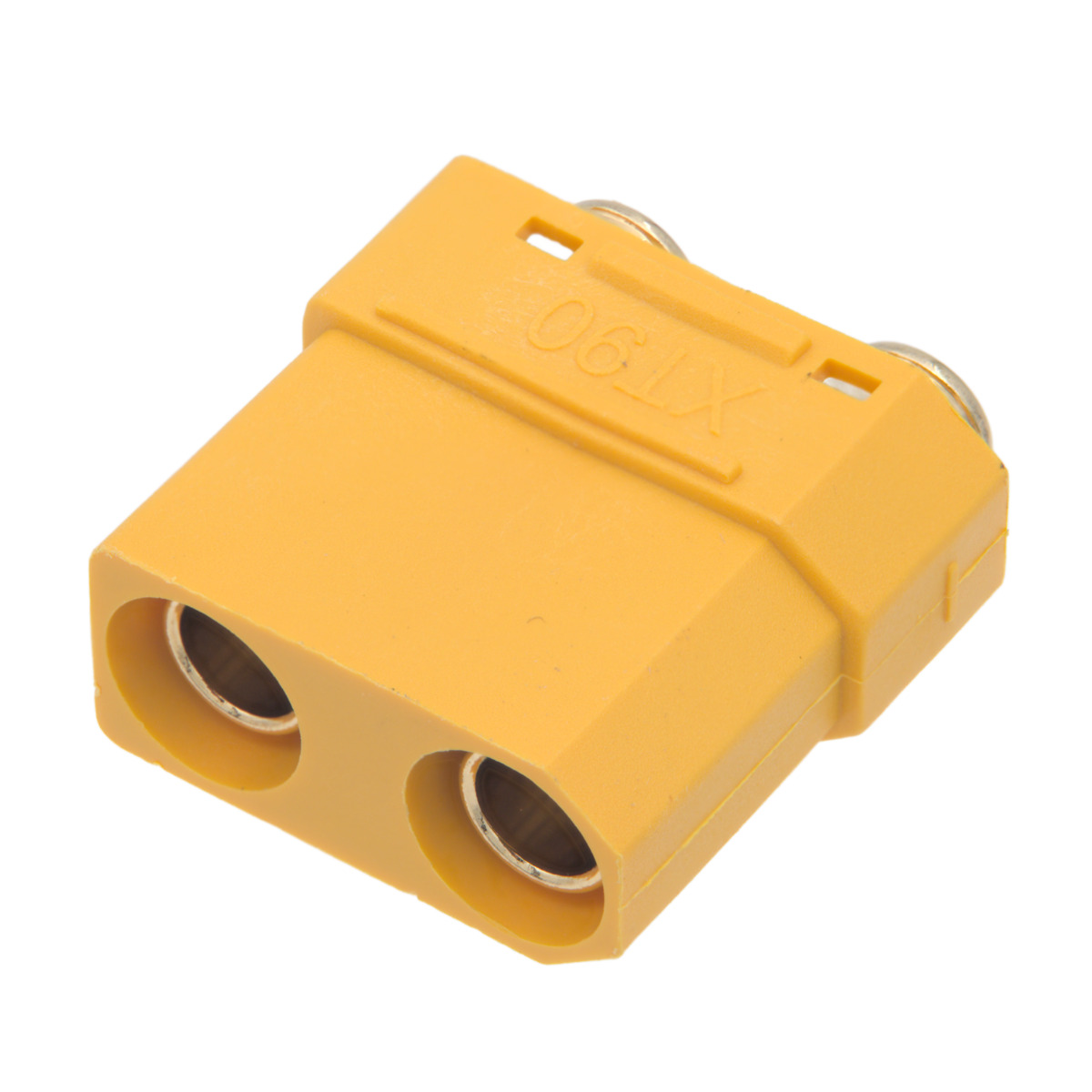

The XT90PB-F connector is the female version for PCB mounting, offering the same features and benefits as the male, but adapted for complementary connection. Specs:
| Connector: | XT90PB | ||
| Type: | Female | ||
| Electrical mounting: | Solder | ||
| Pins: | 2 | ||
| Contacts: | Color: | Yellow | |
| Orientation: | Straight (180 degrees) | ||
| Working voltage: | style="padding-left: 40px">500V|||
| Working current: | 45A | ||
| Snapshot Current: | 90A | ||
| Working temperature: | -20...120°C | ||
| Contact resistance: | ≤0.3mΩ | ||
| Materials | |||
| Contector material: | Brass | ||
| Shell material: | PA (polyamide) | ||
| Flammability class: | UL94V-0 | ||
| Mechanical durability: | 1000 cycles | ||
