Technical features

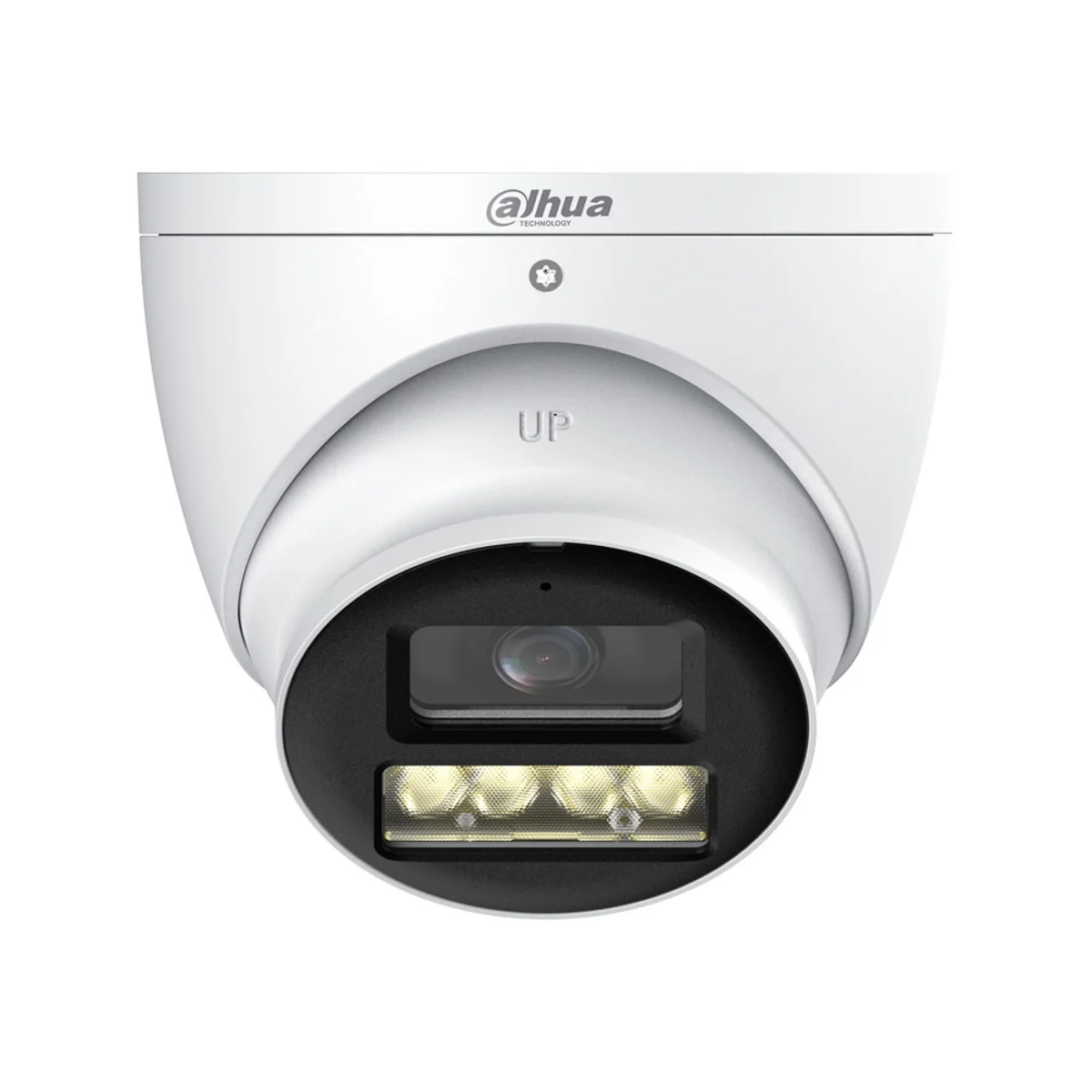

• Dahua brand 4-in-1 Dome, Lite series
• 5 MP CMOS sensor (2880 × 1620)
• ICR, day/night auto, color, B/W
• Minimum illumination 0.05 lux (color), 0.005 lux (B/W), 0 lux with illuminator
• IR and white light illumination up to 40 m (131 ft)
• Illuminators: 4 x 2.8 mm multicore LEDs
• Fixed lens 2.8 mm multicore LEDs
• Angle of view: Horizontal 113.3°, vertical 62.1°, diagonal 134.3°.
• Aperture F1.6

Video

• Resolutions: 5MP (2880×1620), 4MP (2560×1440), 1080P (1920×1080), 960H
• Output Compatibility: CVI, TVI, AHD, CVBS (DIP switching).
• Formats: PAL @25ips / NTSC @30ips

Features

• DWDR, BLC, HLC
• Auto white balance
• Auto gain control
• 3D Noise Reduction (3DNR)
• Motion detection, privacy masks (8 areas)
• Lighting modes: IR, WL, Smart IR&WL
• Super Adapt for automatic parameter adjustment

Audio

• Built-in microphone
• Coaxial audio transmission (CVI, TVI)

Communication interface

• BNC port with CVI/TVI/AHD/CVBS selection (by DIP switch)

Power supply

• 12 VDC (±30%)
• Max. consumption: 6.5 W (with WLED on)

Environmental

• Operating temperature -40°C to +60°C (-40°F to +40°F)
• Relative humidity <95% non-condensing
• IP67 protection

Physical characteristics

• Metal housing
• Wall, ceiling or pole installation
• 3AXIS: Pan 0°-360°, Tilt 2°-74.8°, Rotation 0°-360°
• Dimensions: Φ106,0 × 96,9 mm
• Net weight: 0.50 kg
• Gross weight: 0.64 kg

Contents

• DAHUA-4875 Camera (DH-HAC-HDW1500TP-IL-A-0280B-S3-DIP)

Certifications

• CE-LVD: EN 62368-1
• CE-EMC: EN 55032, EN 55035
