Technical Features

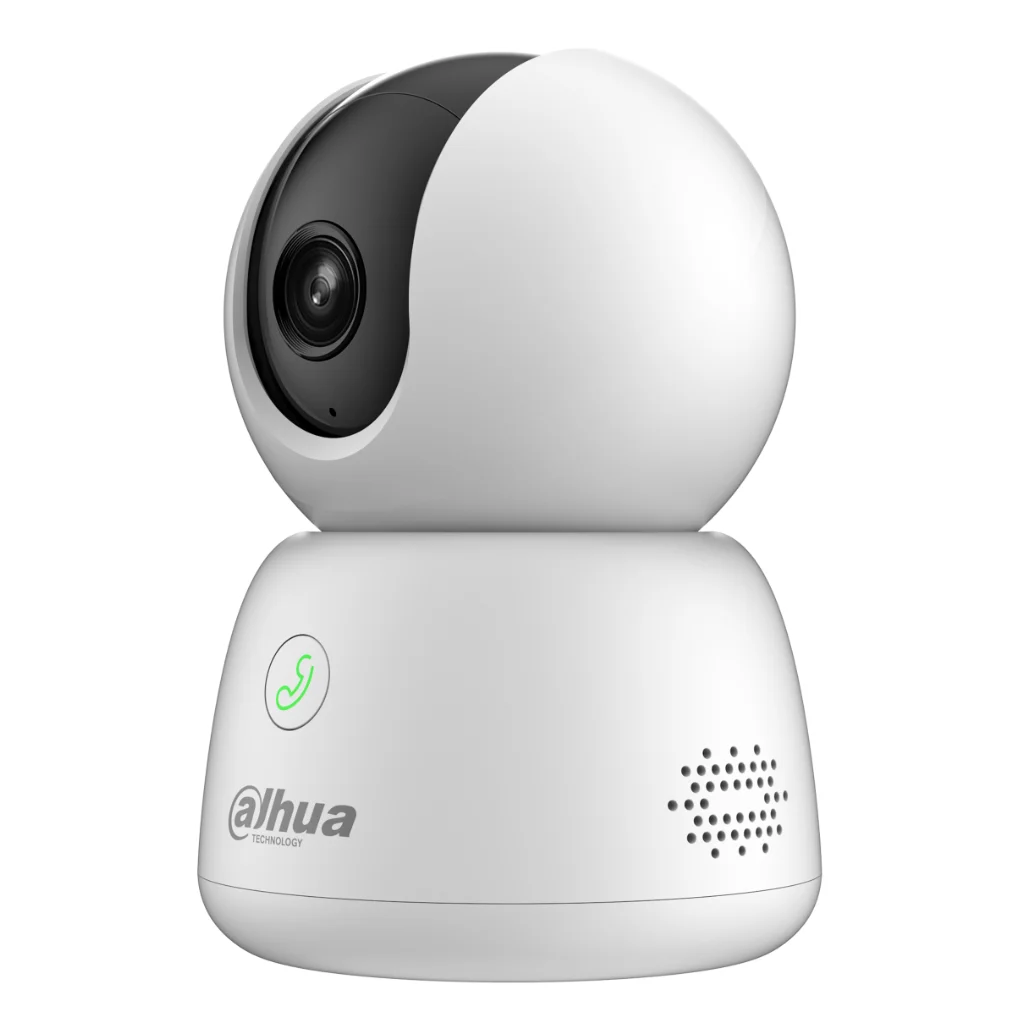

• 3MP Dahua Wireless Wi-Fi IP Dome with Pan/Tilt for Indoor Use
• 1/3.2" CMOS sensor
• Maximum resolution of 3MP (2304 × 1296)
• Electronic auto/manual shutter from 1/3 s to 1/100000 s
• IR illumination up to 10m by 1 IR LED
• Automatic illuminator on/off control
• 2.8 mm fixed lens with F2.0 aperture and H: 99°; V: 55°; D: 117° field of view
• Auto day/night filter (ICR), color and B/W

Video Stream

• H.265 video compression
• Stream 1: 3MP (2304 × 1296)@1-25/30 ips
• Stream 2: nHD (640 × 360)@1-25/30 ips
• H.265 bitrate from 40 kbps to 4096 kbps

Functionalities

• Digital WDR
• Motion detection
• 0° or 180° image rotation
• One-click privacy mode
• Preset patrol
• Day/night vision

Intelligent functions

• Human detection
• Pet detection
• Automatic target tracking

Positioner

• Horizontal from 0° to 350
• Tilt from -5° to 80
• 360° monitoring with no blind spots

Audio

• Built-in microphone
• Integrated speakerphone
• Two-way audio with proactive one-click calling
• G.711a audio compression

Storage

• MicroSD card slot up to 256 GB (card not included)

Alarms

• Abnormal sound alarm
• Sending information to the connected phone

Communication interface

• Bluetooth pairing

Network

• RJ45 10/100 Base-T interface
• IEEE 802.11b/g/n/ax Wi-Fi
• Wi-Fi band from 2.412 to 2.472 GHz
• 2.4G Wi-Fi with power ≤20 dBm between 2400 and 2483.5 MHz
• DMSS management software
• Mobile client for iOS and Android

Power supply

• 5 VDC, 1 A power supply
• Type-C port
• Basic power consumption of 1.6 W
• Maximum power consumption 3.8 W with live view, IR and PT rotation

Environmental

• Operating temperature -10 °C to +45 °C (-10 °C to +45 °C)
• Operating humidity ≤95%.

Physical characteristics

• Plastic housing
• Dimensions: Φ84 mm × 123.8 mm
• Net weight: 206.5 g

Contents

• DAHUA-5036 Pan/Tilt Wi-Fi IP Dome (DH-IPC-H3BP-0280B-EUR)
• Installation position map
• Screw package
• Bracket
• Quick Start Guide
• Legal and Regulatory Information
• QR code
• Power adapter
• Power cable

Certifications and regulations

• CE
