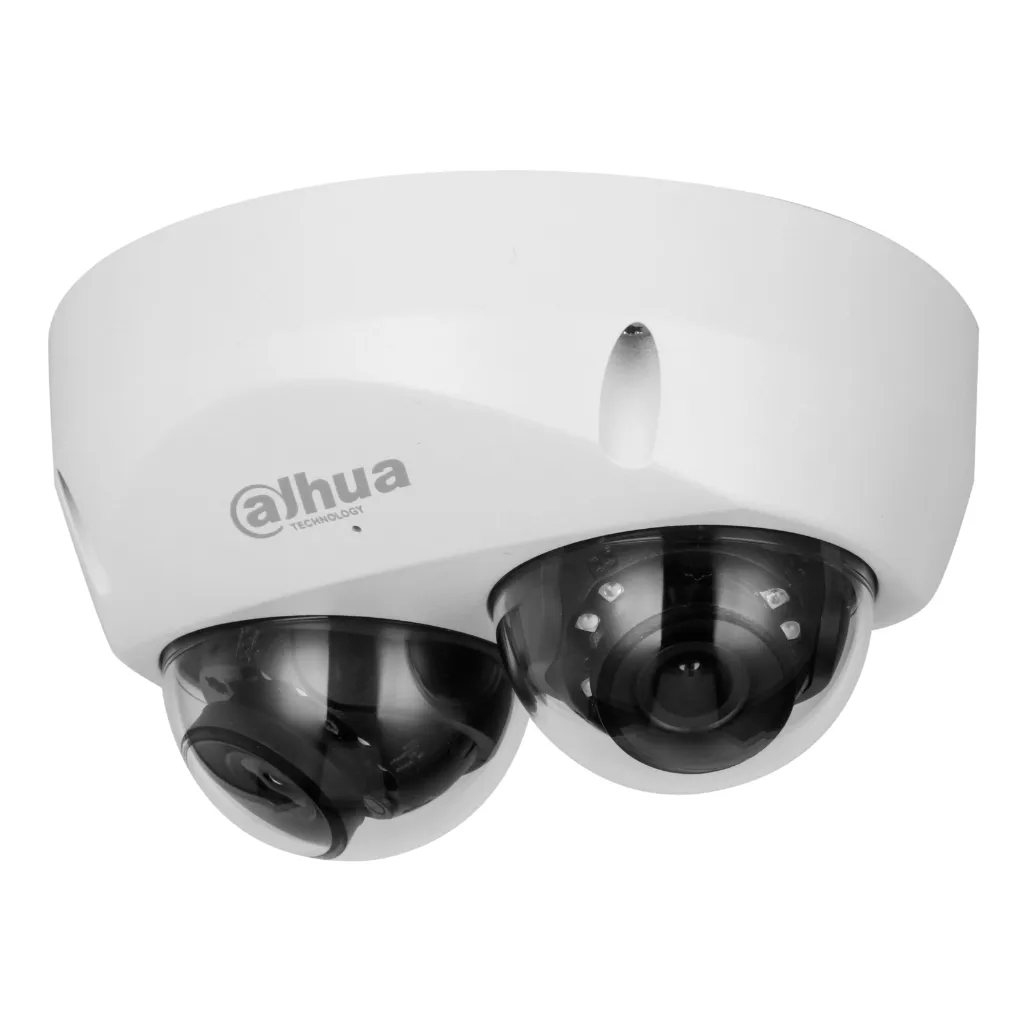

Cámara IP Conteo de Personas H265 2x4MP Dual-Directional WDR IR30m 2.8mm IP67 IK10 PoE AUDIO MIC E/S AI
REF: DH-IPC-HDBW5441F-AS-E2-0280B VPN: IPC-HDBW5441F-AS-E2-0280B EAN: 6923172524287 Marca: DAHUA
descripció
4 megapixel 1/2.7" CMOS sensor Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG Digital resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288) Stream 1: 4MP (1~25/30 ips) Stream 2: D1 (1~25/30 fps) Stream 3: 1080P (1~25/30 ips) Day/night mode with removable mechanical filter Smart IR: 16 leds, 30 meters 0.005 lux F1.6 (color), 0.0005 lux F1.6 (B/W), 0 lux IR On 2.8 mm fixed optics Angle of view: 95°(H), 52°(V), 114°(D) Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror, Defog White balance with 6 modes Automatic gain control Supports 4-zone videosensor, 4 regions of interest (ROI) and 8-zone privacy masking Intelligent Video Sensing (IVS): Abandoned/Lost Object Detection Perimeter protection with line-crossing detection, intrusion detection, fast motion detection (all three modes support person/vehicle classification), loitering detection, people gathering detection and parking detection Face detection People Counting: People counting by line crossing and by people in an area; displays and generates annual / monthly / weekly / daily reports; supports people counting in an area and 4 rule settings Built-in microphone 1 input / 1 output RCA audio 2 alarm inputs / 2 alarm outputs MicroSD card slot up to 256GB (not included) Network interface: RJ45 (10/100 Base-T) Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP ONVIF (Profile S/G/T), CGI, P2P, Milestone, SDK support Up to 20 users Remote viewing via IE8, Chrome, Firefox and Safari browsers Smart PSS, DSS, DMSS management software Compatible with IOS and Android mobile devices Power supply: 12V DC / PoE Maximum power consumption: 6.6W (12V), 8W (PoE) Storage temperature from -40°C ~ +60°C Operating temperature from -40°C ~ +60°C Relative humidity: <95%. IP67 degree of protection Vandal protection IK10 Metal housing Dimensions: Ø122 (W) x 66.2 (H) mm Weight: 520 g 3AXIS: 0°~360° (Pan), 0°~65° (Tilt), 0°~360° (Rotation)
