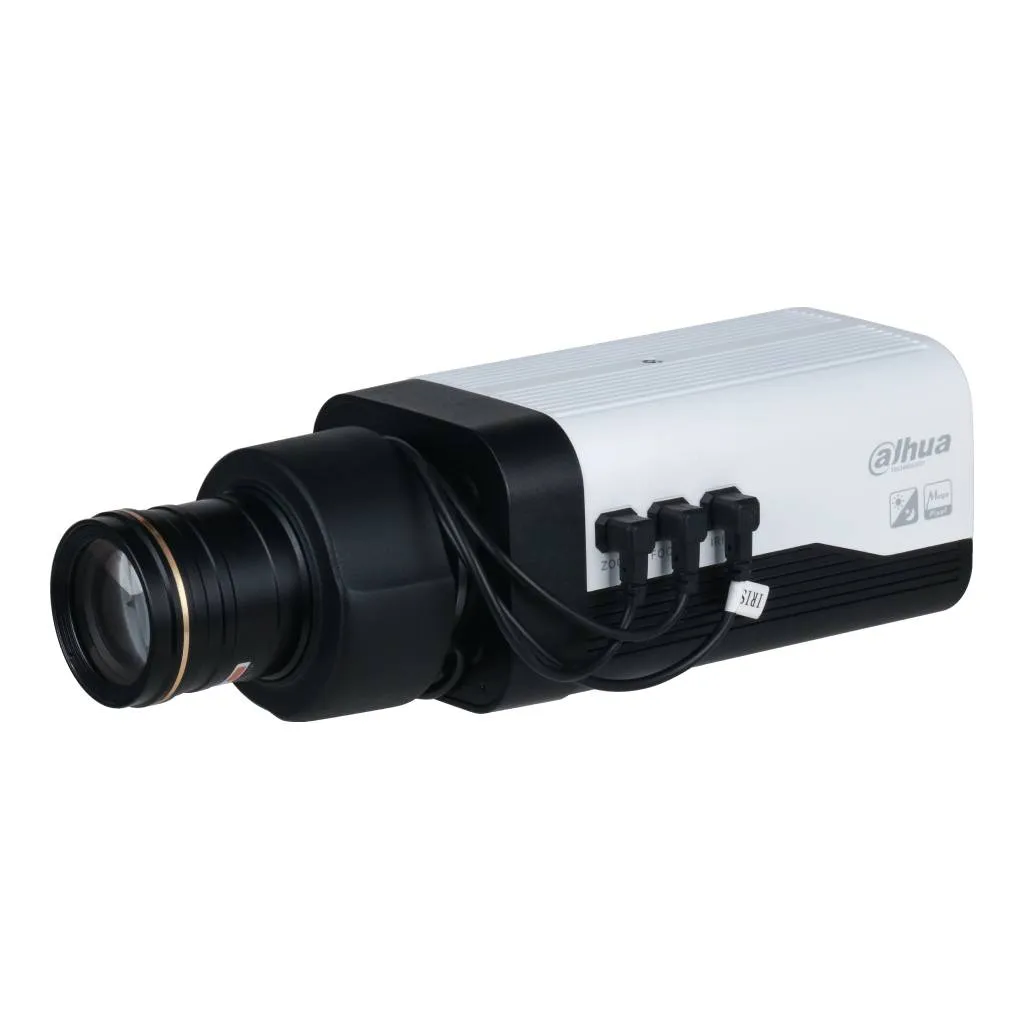

Box IP H265 4M WDR140dB Deeplight ePoE (sin óptica) 2E/2S AUDIO MIC AI
REF: DH-IPC-HF5442F-ZE-S3 VPN: IPC-HF5442F-ZE-S3 EAN: 6923172538390 Marca: DAHUA
descripció
4 megapixel 1/1.8" CMOS sensor Compression Formats: AI H.265, Smart H.265+, Smart H.264+, H.265, AI H.264, H.264, H.264, MJPEG Digital resolution: 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1536, 2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240) Stream 1: 4MP (1~25/30 fps), 1080P (1~50/60 fps) Stream 2: D1 (1~25/30 fps) Stream 3: 1080P (1~25/30 ips) Stream 4: 720P (1~25/30 fps) Day/night mode with removable mechanical filter Minimum illumination (with 10~40 mm optics): 0.0006 lux F1.2 (color), 0.0003 lux F1.2 (B/W) C/CS mount Imaging modes: BLC, HLC, WDR 140dB, SSA, 3D-NR, EIS (image stabilizer), Mirror, Defog. White balance with 6 modes Automatic gain control Supports 4-zone videosensor, 4 regions of interest (ROI) and 8-zone privacy mask Perimeter protection: Cross-line detection, intrusion detection, fast motion detection (all three functions have person and vehicle classification), loitering detection, people gathering and parking detection Intelligent detection of abandoned objects, missing objects, etc. SMD 3.0: Less false alarms, longer detection distance Support heat map Face detection with extraction of up to 6 attributes and 8 facial expressions People counting: Cross-line people counting, generation, area people counting and queue management Video metadata Intelligent sound detection Built-in microphone 2 audio inputs / 1 audio output 2 alarm inputs / 2 alarm outputs BNC video output RS485 port MicroSD card slot up to 512GB (not included) Network interface: RJ45 (10/100 Base-T) Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P ONVIF (Profile S/G/T), CGI, SDK and API support Up to 20 users Remote viewing via IE, Chrome and Firefox browsers Smart PSS Lite, DSS, DMSS, Smart PSS Lite management software Compatible with IOS and Android mobile devices Power supply: 12V DC (±25%) / 24V AC (±25%) / PoE (802.3af) / ePoE Consumption: <9.2W (12V) / 10.7W (24V) / 11W (PoE) Supports ePoE: full duplex transmission over 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable Storage temperature -40°C ~ +60°C (-40°C ~ +60°C) Storage relative humidity: 10% ~ 90% (non-condensing) Operating temperature -30°C ~ +60°C (-30°C ~ +60°C) Operating relative humidity: ≤95%. Not suitable for outdoor use Metal housing Dimensions: 74 (W) x 86.8 (H) x 161.6 mm Net weight: 760 g Gross weight: 980 g
×
‹
›
