Technical Features

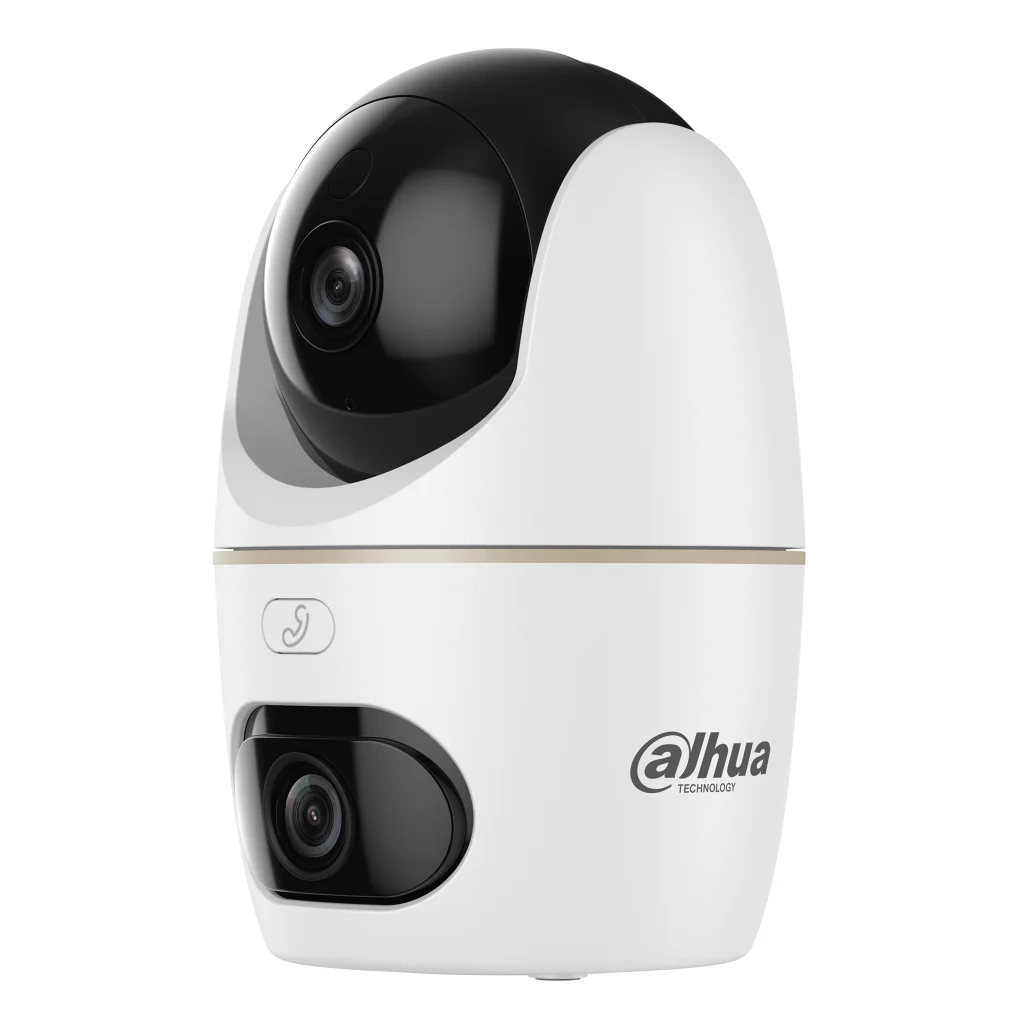

• Dahua Wireless Indoor Dual Lens Wi-Fi IP Dome
• Dual lens with one fixed lens and one PT lens
• 1/3" CMOS sensor on the fixed lens
• Maximum resolution of the fixed lens: 5MP (2880 × 1620)
• 1/3" CMOS sensor on the PT lens
• Maximum resolution of PT lens: 5MP (2880 × 1620)
• 3.6mm fixed lens with F2.0 aperture and field of view H: 86°, V: 46°, D: 104°.
• 3.6mm PT Lens with F2.0 aperture and field of view H: 86°; V: 46°; D: 104°.
• IR illumination up to 30 m on the fixed lens via 2 IR LEDs
• IR illumination up to 30 m on the PT lens via 2 IR LEDs
• Warm light up to 30 m on PT lens via 1 warm light LED
• Auto Day/Night filter (ICR), color and B/W

Video stream

• H.265 video compression
• Stream 1: 5MP (2880 × 1620)@15 ips
• Stream 2: 640 × 360@15 fps
• H.265 bit rate from 768 kbps to 4096 kbps

Functionalities

• Digital WDR
• Motion detection
• 0° or 180° image rotation
• Privacy mode
• Preset patrol
• Intelligent dual channel detection

Intelligent functions

• Human detection
• Pet detection
• Automatic target tracking on PT Lens

Positioner

• PT Lens panning from 0° to 349° PT Lens panning from 0° to 349
• PT Lens with -5° to 90° tilt

Audio

• Built-in microphone
• Built-in speaker
• G.711a audio compression
• One-click proactive two-way calling

Storage

• MicroSD card slot up to 256 GB (card not included)

Alarms

• Abnormal sound alarm
• Audible and luminous warning upon intrusion detection
• Notifications to mobile client

Communication interface

• Wi-Fi pairing via Bluetooth

network

• RJ45 10/100 Base-T interface
• IEEE 802.11a/b/g/n/ac/ax Wi-Fi
• 2.4 to 2.4835 GHz Wi-Fi band with EIRP ≤20 dBm
• 5.15 to 5.25 GHz Wi-Fi band with EIRP ≤23 dBm between 5150 and 5250 MHz
• DMSS management software
• Mobile client for iOS and Android

Power supply

• 5 VDC power supply
• Type-C port
• Basic power consumption of 2.5 W
• Maximum power consumption 5.4 W with stream, IR and PT rotation

Environmental

• Operating temperature -10 °C to +45 °C (-10 °C to +45 °C)
• Operating humidity ≤95% RH without condensation

Physical characteristics

• Fixed lens angle adjustment from 0° to 15°.
• Plastic housing
• Dimensions: Φ80.9 mm × 125.7 mm
• Net weight: 233 g

Contents

• DAHUA-4855 Dual Lens Wi-Fi IP Dome (DH-IPC-HPT1539DDP-STW-5E2-0360B-EUR)
• Installation position map
• Screw package
• Bracket
• QR Code
• Quick Start Guide
• Legal and regulatory information
• Power adapter
• Power cord

Certifications and standards

• CE
