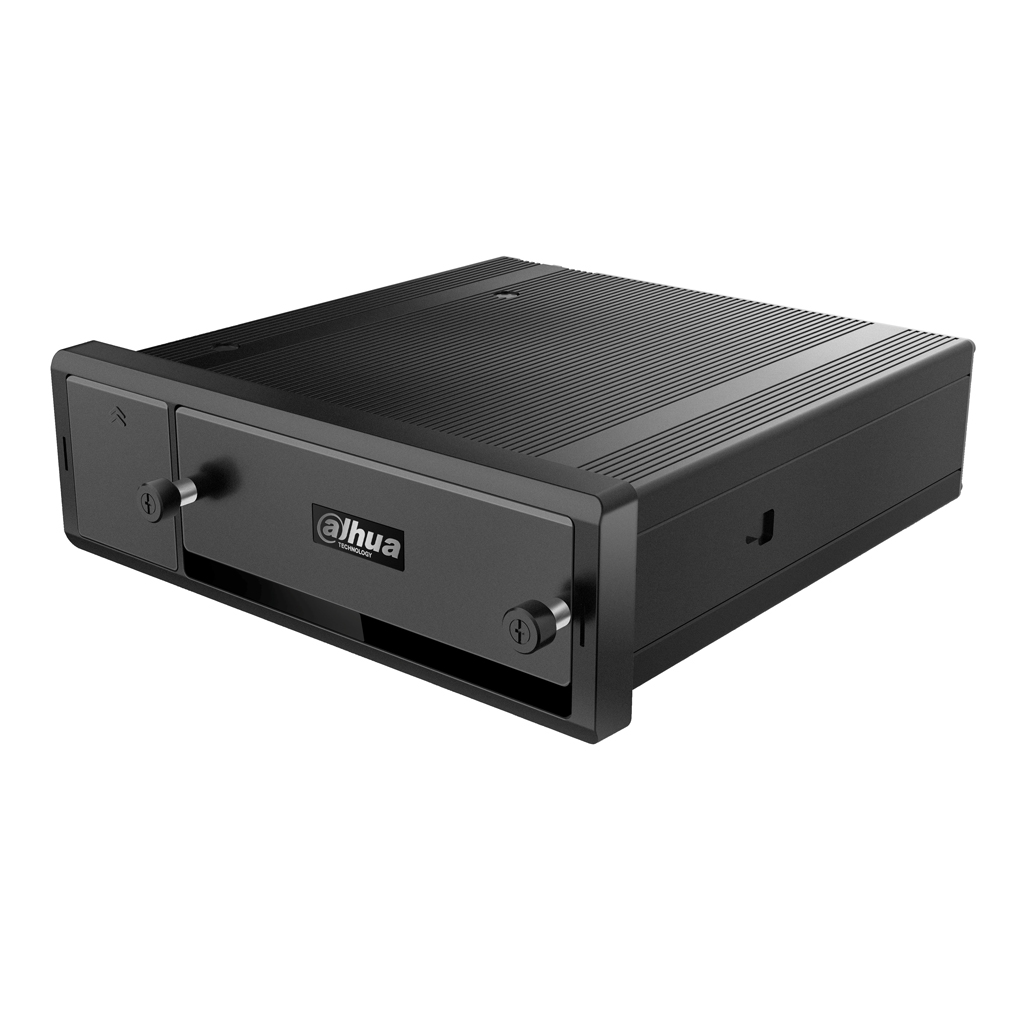

DVR 5EN1 Embarcado 4ch 1080P H265 1VGA 1 conector AVIACION 1HDD/SSD 1SD GPS 4G WiFi DC6-36V AI
REF: DH-MXVR4104-GFWI
VPN: MXVR4104-GFWI
EAN: 6923172529701
Marca: DAHUA
descripción
- 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras
- 4 BNC channels up to 2MP
- 4 IP channels up to 2MP
- Video compression: Smart H.265, Smart H.264, H.265, H.264
- AV and VGA video outputs (800x600, 1280x1024)
- Output division: 1, 4, 8, 9
- 4-channel PoE audio input (audio input is only compatible with CVI cameras)
- 1 aviation port for audio output
- 1 audio output for conversation
- Two-way audio
- Audio compression: G.711a, G.711u, PCM
- Recording resolution: 1080P, D1
- Main stream: 1080P (1~25/30 fps)
- Secondary stream: D1 (1~25/30 fps)
- Recording Modes: Auto, Manual, Motion Detection, Schedule, Alarm
- Playback up to 4 channels
- 8 inputs / 1 alarm output
- Internal capacity for 1/2 2.5" SATA HDD up to 2TB (sold separately)
- SD card slot up to 256GB (card not included)
- ADAS compatible: Forward collision, lane departure and vehicle too close distance alerts
- DSM compatible: Supports drowsy driving, distracted driving, call-driving, driver absence, IR-blocking sunglasses, smoking while driving and lens tampering detection
- Blind spot detection support
- Multiple network monitoring: Web Viewer, Mobile Center and DMSS
- Integrated 3G/4G/Wi-Fi module
- Integrated GPS module
- 1 RJ45 10/100M port on the front panel
- 1 RJ45 10/100M port with 6-pin aviation connection on the rear panel
- 2 USB 2.0 ports on the front panel
- 1 USB 2.0 port from the EXTEND port on the rear panel
- 2 RS232 ports
- 1 RS485 port
- GPS/GLONASS satellite positioning
- Power supply: 6V ~ 36V DC with built-in UPS
- Power consumption: 8.4W
- Operating temperature from -30°C ~ +70°C
- Relative humidity 10% ~ 90%
- Anti-vibration material and structure
- Maximum operating altitude of 5000 meters
- Dimensions: 190 (W) x 60 (H) x 190 mm
- CE, FCC, EN50155, ISO7637-2, ISO16750, BIS certifications
