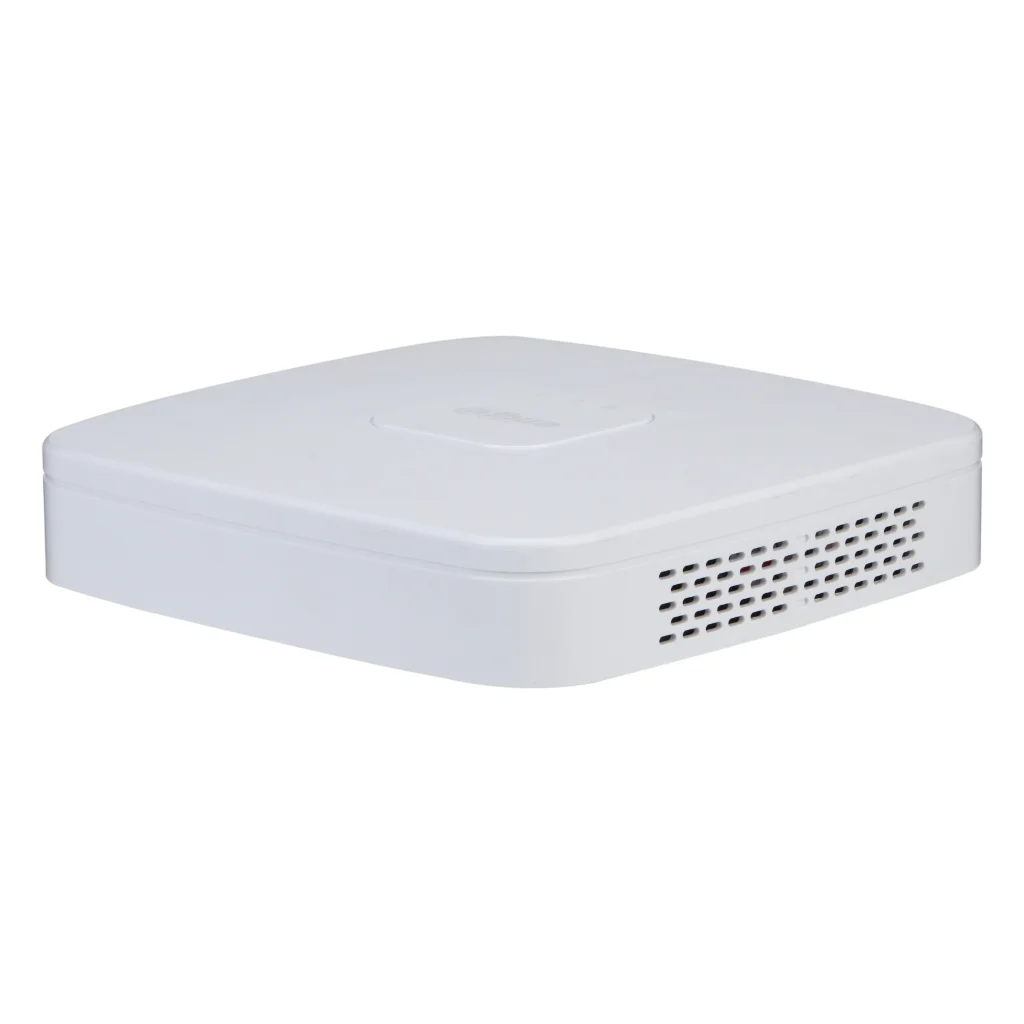

NVR 8ch 80Mbps H265 4K HDMI 1HDD
REF: DH-NVR2108-4KS3
EAN: 6923172507846
Marca: DAHUA
descripción
- 8 IP channels
- Video compression: Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG.
- Simultaneous HDMI (4K) and VGA (1080P) video outputs
- Output division: 1, 4, 8, 9
- 1 input / 1 output RCA audio
- Audio compression: G.711a, G.711u, PCM, G726
- Recording resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
- Bandwidth: 80 Mbps input, 80 Mbps for recording and 60 Mbps for output
- Decoding capability with AI disabled:
- 1 channel at 12MP (30 fps)
- 1 channel at 8MP (30 fps)
- 2 channels at 5MP (30 fps)
- 3 channels at 4MP (30 fps)
- 6 channels 1080P (30 fps)
- AI-enabled decoding capability:
- 1 channel at 8MP (30 fps)
- 1 channel at 5MP (30 fps)
- 2 channels at 4MP (30 fps)
- 4 channels 1080P (30 fps)
- General, motion detection, intelligence, alarm, alarm recording modes
- Alarm by videosensor, external camera alarm, PIR alarm
- Artificial Intelligence from intelligent cameras:
- Perimeter protection: 4 channels
- SMD Plus: 4 channels
- Artificial Intelligence in the recorder:
- Playback up to 8 channels
- Internal capacity for 1 SATA HDD up to 20TB (sold separately)
- RJ45 Fast Ethernet network port (10/100Mbps)
- Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filtering, DDNS, IP Search (supports IP cameras, DVR, NVS, etc.), P2P, Auto Logging
- ONVIF 22.12 (T/S/G), CGI and SDK support
- Compatible with Chrome, IE, Safari, Edge, Firefox web browsers
- Compatible with Android and iOS devices
- Server Access local network and Internet
- Ability to limit user access to cameras in local and/or remote mode
- Can be controlled remotely via Joystick keyboard connected by TCP/IP
- Sending of eMails with photograph attached in alarm
- Sending to FTP programmed or in alarm
- Possibility to send alarm, and to be connected to video surveillance receiver software
- Possibility of fixed or dynamic IP through Dyndns, NoIP, DDNS Evolution, etc. service.
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 1.5A
- Power consumption: ≤10W (excluding disks)
- Storage temperature from -20°C ~ +60°C
- Operating temperature from -10°C ~ +55°C
- Relative humidity 10%~93% (non-condensing)
- Dimensions: 204.6 (W) x 45.6 (H) x 206.4 mm (W x H) x 206.4 mm (H x D)
- Net weight: 450 g
- Gross weight: 1.05 kg
- Tabletop installation
