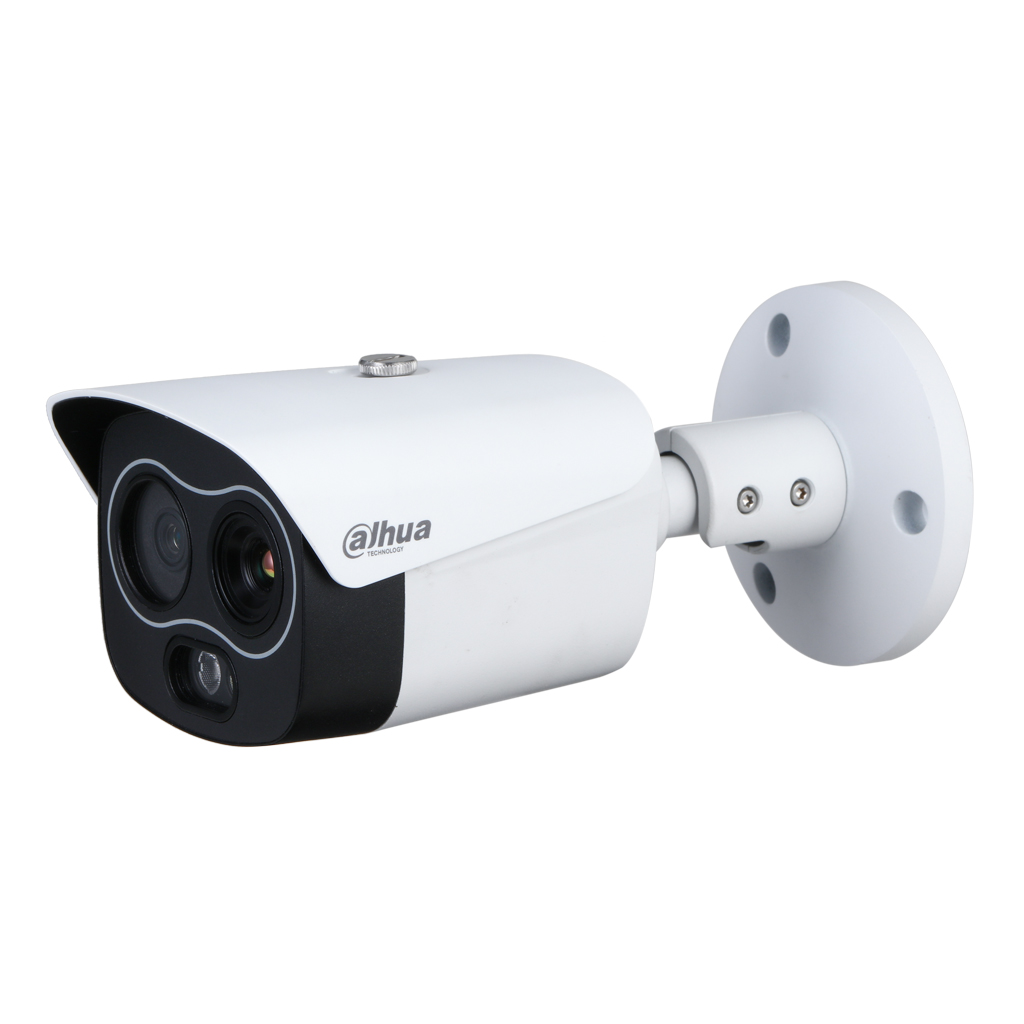

Dual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/O
REF: DH-TPC-BF1241-TB3F4-DW-S8 VPN: TPC-BF1241-TB3F4-DW-S8 EAN: 6923172568397 Marca: DAHUA
Dual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/O
Dual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/ODual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/ODual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/ODual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/ODual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/ODual IP Thermal Imaging Camera 256*192 3.5mm + 4M 4mm IP67 12V PoE AUDIO I/O

description

- 1/2.7” 4MP Progressive CMOS sensor.
- Uncooled VOx thermal sensor.
- 256x192px resolution.
- Dual image fusion (visible and thermal images).
- Fixed 3.5mm Thermal Lens / 4mm IP Lens.
- Field of View: H:50.6º- V:37.8º (Thermal).
- Field of View: H:71.2º- V:52º- H:92.6º (IP).
- Detection: People 146m, Vehicles 389m.
- Configurable dual stream (H.265/H.264M/H.264H/H.264B/MJPEG).
- Integrated video analytics: Tripwire, intrusion.
- AI: Fire detection and alarm, Cold/Hot spot tracking, Human/Vehicle classification, Smoker detection, Telephone call detection.
- Temperature measurement support.
Temperature Range:
Low temperature: –20ºC to +150ºC.
High temperature: 0ºC to +550ºC.
- Temperature accuracy: Max. (± 2 °C, ± 2 %).
- Operating temperature: –20ºC to +50ºC.
- Smart link with strobe light and audio.
- Alarm I/O, Audio I/O, 1xRJ-45, 1xRS485.
- DC12V Power (Max14W (Heater, LEDs on)) and PoE.
- IP67 Protection.
- Dimensions & Weight: 205.5x90.4x90.1mm / 0.9Kg.
