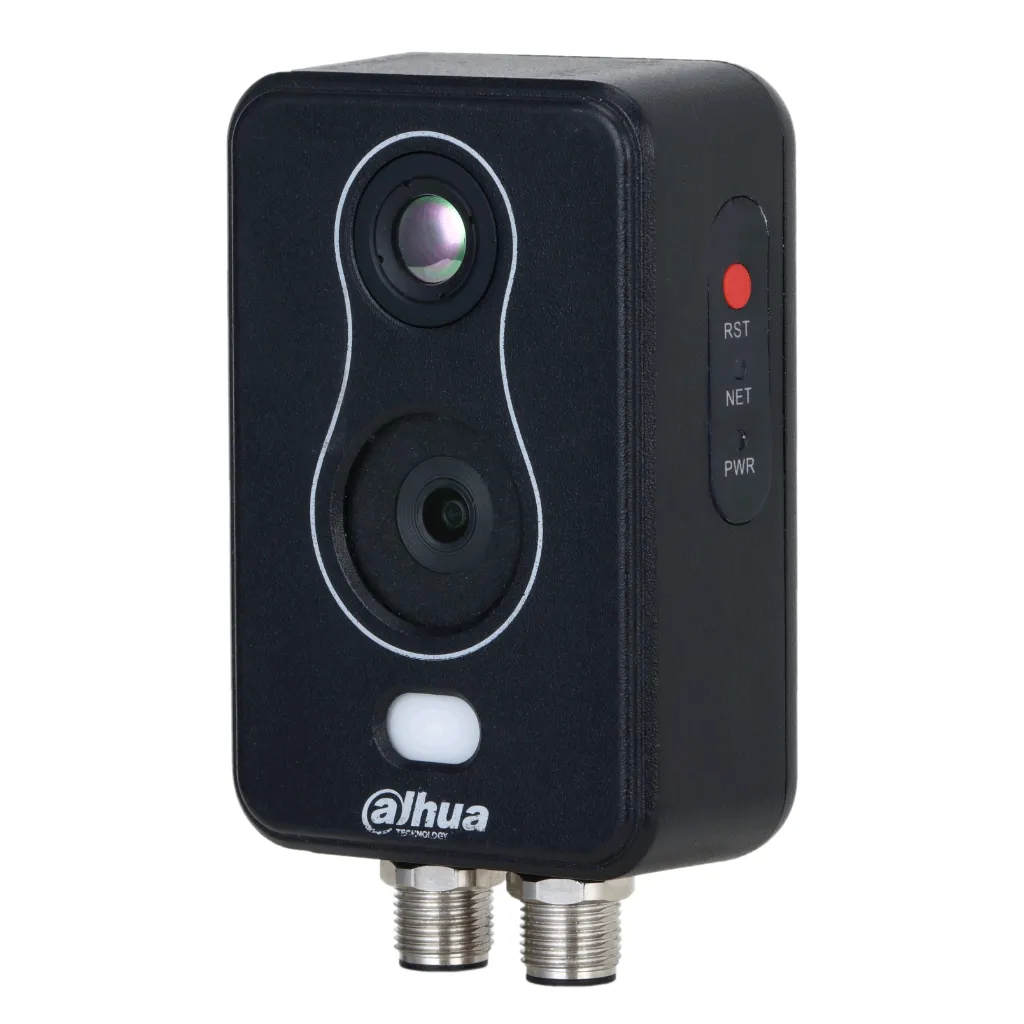

DUAL 256*192 2mm + 4M 2mm IP67 12V PoE I/O compact IP Thermal Imaging Camera 256*192 2mm + 4M 2mm IP67 12V PoE I/O
REF: DH-TPC-KF2241-TB2F2-S3 VPN: TPC-KF2241-TB2F2-S3 Marca:
DUAL 256*192 2mm + 4M 2mm IP67 12V PoE I/O compact IP Thermal Imaging Camera 256*192 2mm + 4M 2mm IP67 12V PoE I/O
DUAL 256*192 2mm + 4M 2mm IP67 12V PoE I/O compact IP Thermal Imaging Camera 256*192 2mm + 4M 2mm IP67 12V PoE I/O

description

- 1/2.8" 4MP CMOS. - Uncooled VOx thermal sensor. - Resolution 256x192px. - Dual image fusion (visible and thermal images). - Fixed Thermal Lens 2mm / IP Lens 2mm. - Viewing angle: H:84.8º- V:61º (Thermal). - Viewing angle: H:93.4º- V:69.53º (IP). - Ultra wide angle lens. - Dual stream configurable (H.265/H.264M/H.264H/H.264B/MJPEG). - Built-in white light. White light alarm. - Illumination distance: 4m. - AI: Cold/hot spot detection. - Temperature measurement: Temperature range: -20ºC to +550ºC. Temperature accuracy: Max. (± 2 °C, ± 2 %). Operating temperature: -20ºC to +50ºC. - Alarm I/O, 1xRJ-45, 1xRS485. - Power supply 12Vdc (Basic: 3W/Max: 5W), PoE, ePoE. - IP67 protection. - Includes magnetic support RKN010-02. - Dimensions and weight: 113.6x62.0x62.0x39.0mm / 0.5Kg.
