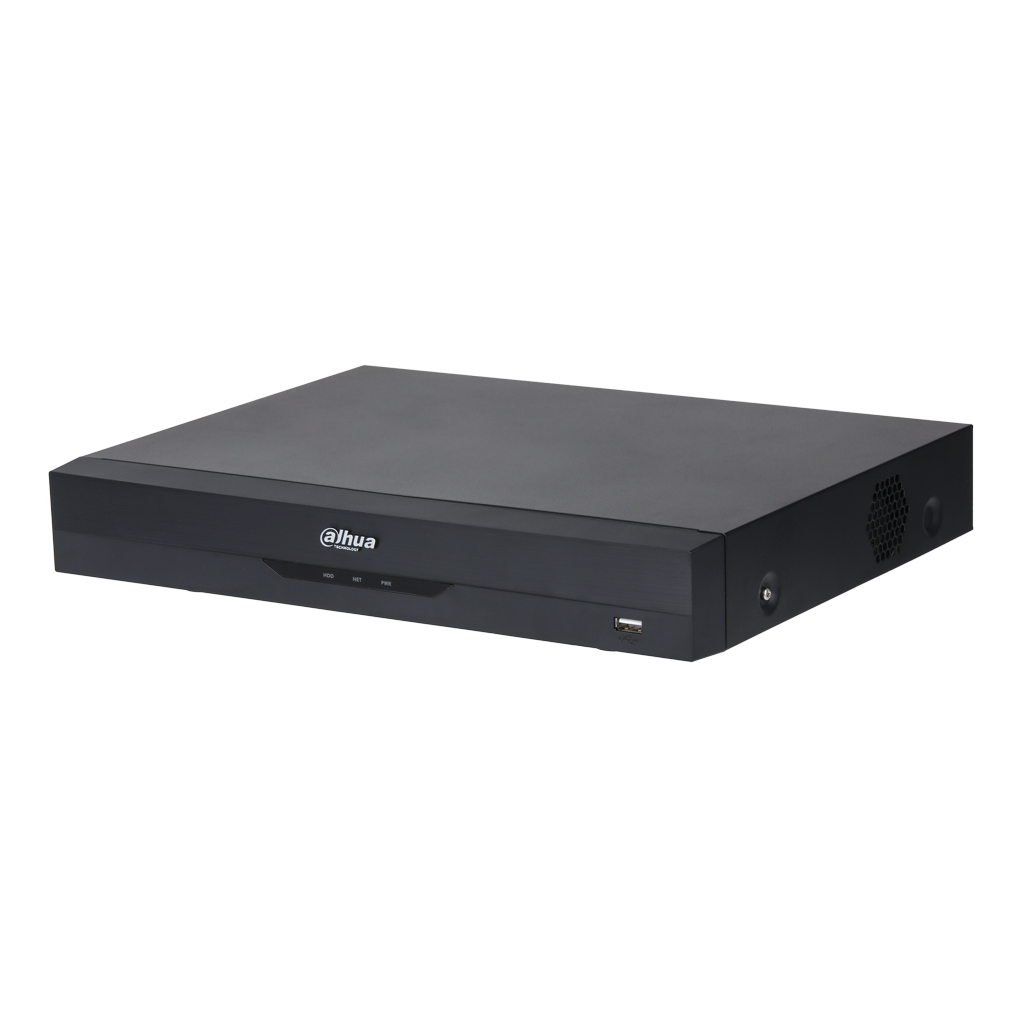

This product supports five technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with auto signal recognition. It features 16 BNC channels (BNC inputs can be converted to IP). Up to 32 IP channels are supported (16 IP channels by default + 16 analog channels converted to IP channels). Video compression is available in AI, H.265+, H.265, H.264+, and H.264 formats. It offers HDMI (4K) and VGA (up to 1080P) video outputs simultaneously or heterogeneously. Output splitting with IP extended mode off: 1, 4, 8, 8, 9, 16. Output splitting with IP extended mode on: 1, 4, 8, 9, 16, 25, 36. Bi-directional audio is supported with 1 RCA audio input / 1 RCA audio output. There are 16 audio inputs through coaxial cable. Audio compression supports G.711a, G.711u, and PCM. Camera input resolutions include: CVI: 8MP/4K (12.5/15/25/30 fps), 6MP (20 fps), 5MP (20/25 fps), 4MP (25/30 fps), 1080P (25/30 fps), 720P (25/30/50/60 fps); TVI: 8MP/4K (15 fps), 5MP (20 fps), 4MP (25/30 fps), 3MP (25/30 fps), 1080P (25/30 fps), 720P (25/30 fps); AHD: 8MP/4K (15 ips), 5MP (20 ips), 4MP (25/30 ips), 3MP (25/30 ips), 1080P (25/30 ips), 720P (25/30 ips). Bandwidth is 128 Mbps input, 128 Mbps for recording and 128 Mbps output (with IP extended mode AI functions will be disabled). The main stream supports 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4K-N/4MP/3MP (1~15 fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30 fps). The secondary stream supports 960H (1~15 ips), D1/CIF (1~25 ips). General, video detection, IVS, alarm, POS recording modes are available. Playback is supported up to 16 channels. QuickPick 2.0: 2 channels. Perimeter protection: 2 channels, 10 IVS rules per channel. Face detection: 2 channels, each channel detects up to 8 faces. Privacy protection: 1 channel. Facial recognition: 2 channels, up to 10 databases and 20,000 facial images. SMD Plus: 16 channels, person/vehicle classification. Video quality analysis: 16 channels. Scene change detection: 1 channel. It supports 1 SATA HDD up to 16TB (not included). The menu is multi-language. Software and hardware watchdog functionality is included. A watermark is used to preserve video integrity. The network port is RJ45 10/100/1000Mbps. Network protocols supported include HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filtering, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Logging, and IP Search (supports IP cameras, DVR, NVS, etc.). ONVIF 23.12 (T/S/G), CGI, SDK support is available. Remote access is possible from web browser and iPhone, iPad, Android devices (EVO and TTS App). The system sends eMails with attached photo in alarm. It sends to FTP programmed or in alarm. The possibility of fixed or dynamic IP via DDNS Evolution service is supported. Communication ports include 2 USB 2.0 ports and 1 RS485 port. Power supply is 12V DC, 3A (<15W, excluding disks). Storage temperature ranges from -20°C ~ +60°C. Operating temperature ranges from -10°C ~ +55°C. Relative humidity ranges from 10% ~ 90% (non-condensing). Dimensions are 325 (W) 55 (H) x 257 mm (1.5 in.) x 257 mm (1.5 in.). Net weight is 1.30 kg. Gross weight is 2.10 kg. Tabletop installation is supported. It is CE certified.
