| Marca | Teltonika |
| Área geográfica de funcionamiento/Bandas soportadas | Norte América 5G NR NSA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78 5G NR SA: 5G NR SA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78 5G DL 4 × 4 MIMO: n2, n5, n7, n12, n13*, n14, n25, n26*, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78 4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71 4G (LTE-TDD): B38, B41, B42, B43, B48 |
| ISPs compatibles | T-Mobile, AT&T (FirstNet) |

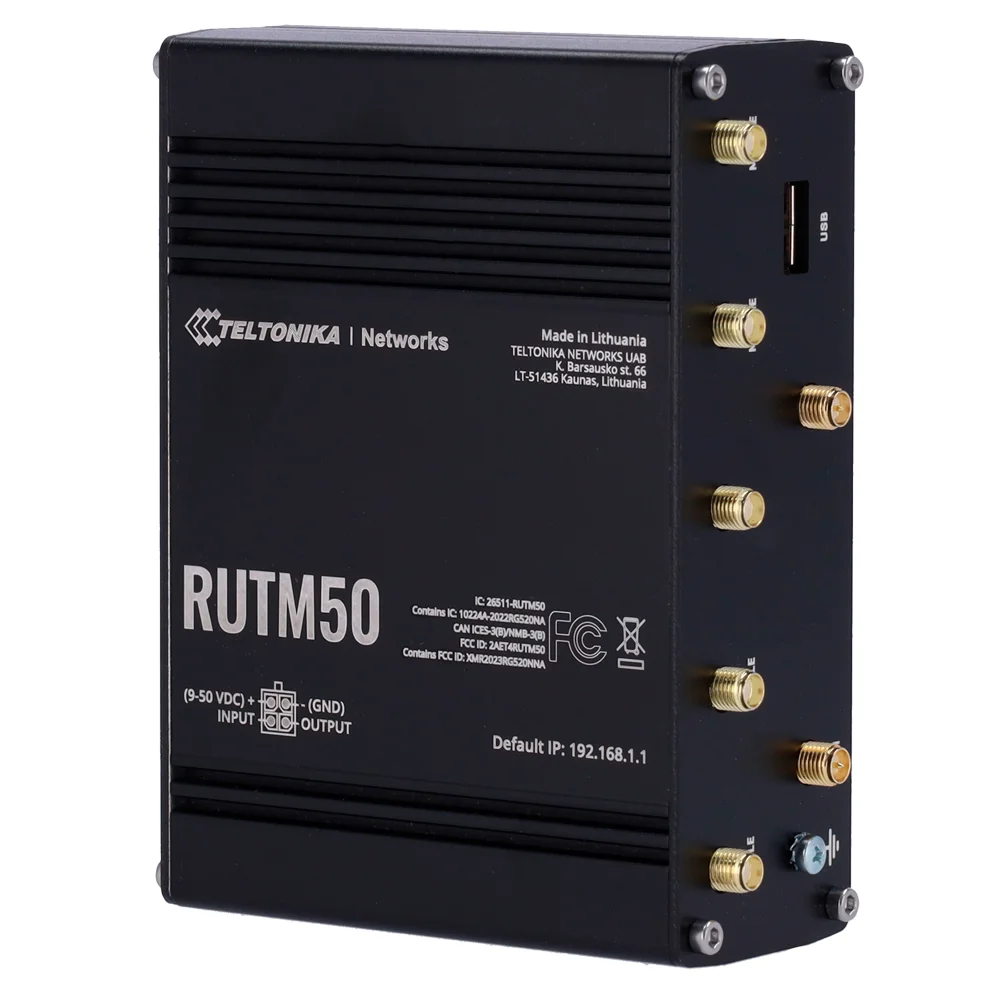

| Dispositivo | Router Industrial 5G |
| WiFi | IEEE 802.11 b/g/n/ac Doble Banda 2.4+5GHz |
| Ethernet | 5 puertos Ethernet RJ45 10/100/1000 Mbps (1x LAN/WAN + 4x LAN) |
| SIM | 2 ranuras para tarjetas microSIM |
| Posicionamiento | GPS/GLONASS/Beidou/Galileo/QZSS |
| Conectores antena | 4 x LTE 1 x GPS y 2 x WiFi (antenas incluidas) |
| CPU | 880 MHz, Dual-Core MediaTek MT7621A |
| RAM | 256 MB DDR3 |
| Flash | 16MB serial NOR flash, 256MB serial NAND flash |
| Protocolos de red | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Puertos | 1x Entrada Digital +1x Salida Digital + 1x Puerto RS232 + 1x Puerto RS485 |
| Alimentación | DC 9~50V (alimentador 18W requerido incluido) |
| Material | Carcasa de aluminio |
| Temp. funcionamiento | -40º C ~ +75º C |
| Humedad funcionamiento | 10 ~ 90 % (no condensante) |
| Instalación | Carril DIN |
| Dimensiones | 132 × 95,1 × 44,2 mm |
| Peso | 519 g |
